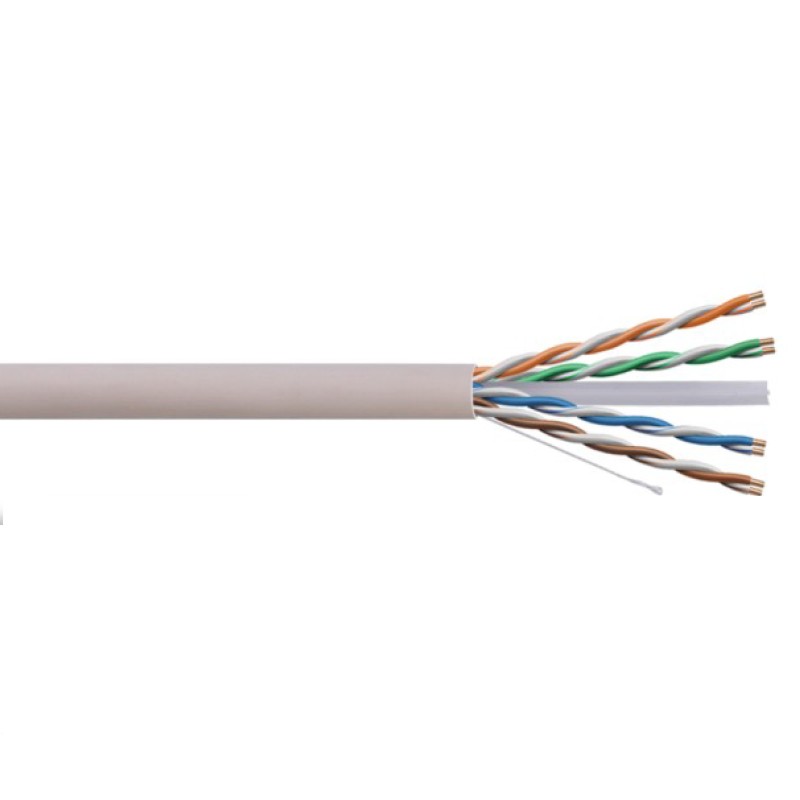

CAT6 UTP CABLE

Cat6 UTP cable comes in an easy to use pull box and is ideal for the person looking to make longer permanent network runs during installation/expansion of network infrastructure.

Cat6 Cable is used in network applications and have been designed specifically for Gigabit Ethernet applications. They perform at high-data transfer rates, and work with ATM and gigabit speed products.

Features

• Capable of handling the latest versions of Power over Ethernet

• Conductor sizes for PowerMAX500TM Cat.6 set at 23AWG

• PVC jacketed 4 pair telecommunications cable

• Successful transmission at 500Mhz up to a length of 70Mtrs

• EZI-Pull 305Mtr Box for trouble free installation

Applications

• Horizontal and backbone cable

• 1000BASE-TX Gigabit Ethernet / 1000BASE-T Gigabit Ethernet

• 100BASE-TX Fast Ethernet / 10BASE-TX Ethernet

• 100 Mbps TP-PMD / 100VG-AnyLAN

• Broadband Video / Voice / T1 / ISDN

• 10 Gigabit (500Mhz) Transmission up to length of 70Mtrs

Standards Conformance

• Performance - ANSI/TIA 568.2-D Cat.6 / ISO/IEC 11801

• Structural - EN 13501-6:2014 | IEC 61156-5 | EN 50288-6-1

• PoE capability - IEEE 802.3bt level 3 & 4 (PoE++ & 4PPoE)

• Environmental - Conforms to RoHS and REACH Directives

• Flame testing - EN 60332-1-2
