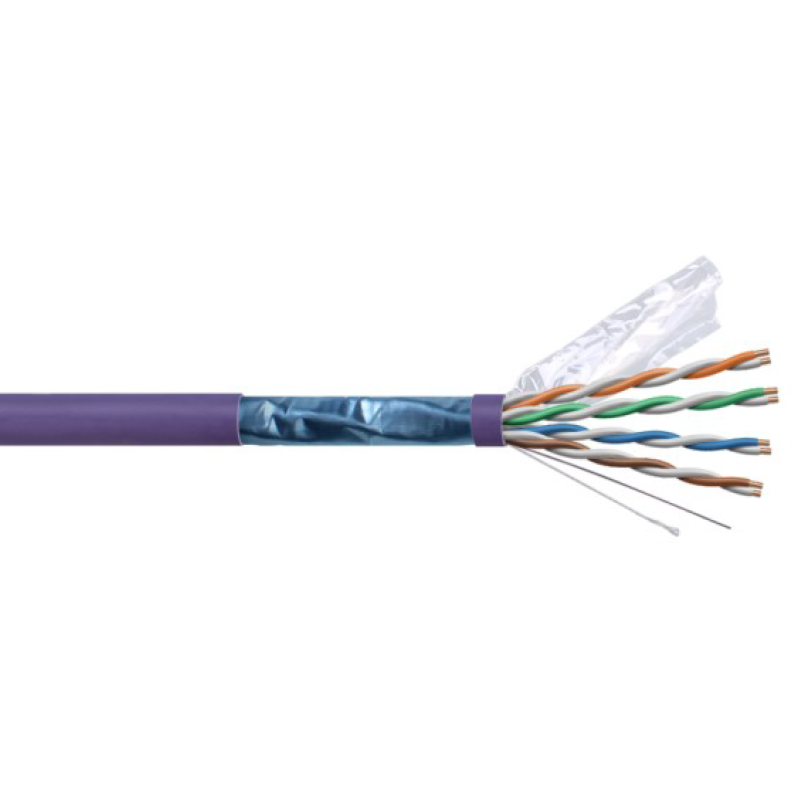

CAT6A FTP CABLE

Cat6a was developed to achieve maximum distance of 100 meters for full 10 Gigabit network speeds. This robust spec will afford you the extra headroom across your network that Cat6 can not.

The 750MHz performance is double that of Category 6 and five times the bandwidth capacity of Category 5e. Our Cat6a bulk cable tested for compliance with all EIA/TIA-568-C Cat 6 specifications.

Features

• Capable of handling the latest versions of Power over Ethernet


• Conductor sizes for Cat6A set at 23AWG

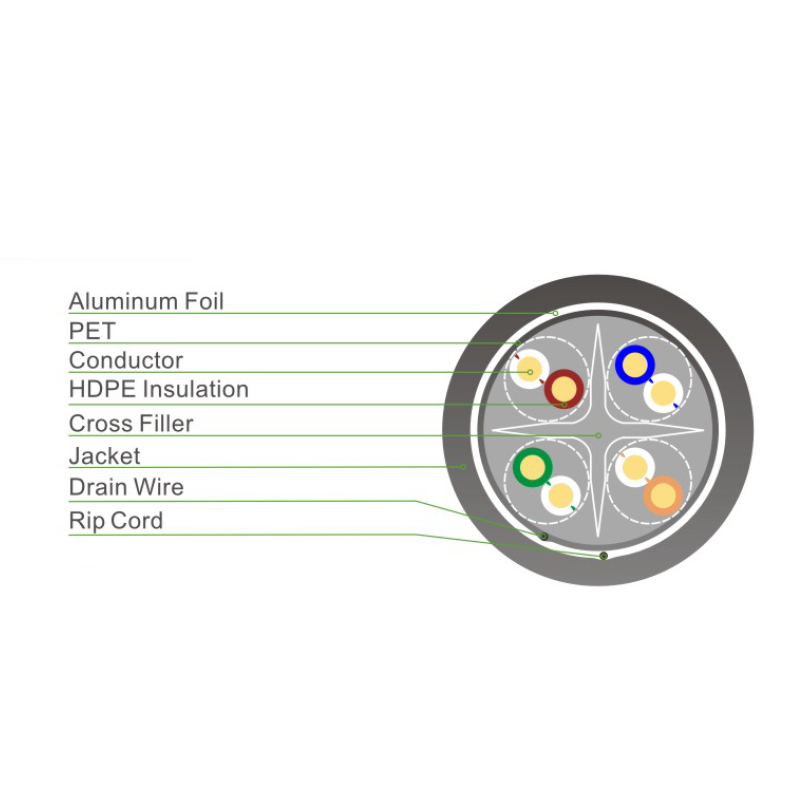

• PVC LSZH jacketed 4 pair telecommunications cable


• Successful transmission at 500Mhz up to a length of 100Mtrs


• EZI-Pull 305Mtr Reel for trouble free installation


• Foil shield helps prevent EMI/RFI & AXT from entering cable

Applications

• Horizontal and backbone cable


• 10GBASE-T 10 Gigabit Ethernet


• 1000BASE-TX Gigabit Ethernet / 1000BASE-T Gigabit Ethernet


• 100BASE-TX Fast Ethernet / 10BASE-TX Ethernet


• 100VG-AnyLAN / Broadband Video / Voice / T1 / ISDN


• 10 Gigabit (500Mhz) Transmission up to length of 100Mtrs

Standards Conformance

• Performance - ANSI/TIA 568.2-D Cat.6A / ISO/IEC 11801


• Structural - EN 13501-6:2014 | IEC 61156-5 | EN 50288-10-1


• PoE capability - IEEE 802.3bt level 3 & 4 (PoE++ & 4PPoE)


• Environmental - Conforms to RoHS and REACH Directives


• Flame testing - EN 60332-1-2 | EN61034-2 | EN 60754-1/2


• CPR Reaction To Fire - Equivalent to Dca,s2,d2,a1 as per EN 50399
