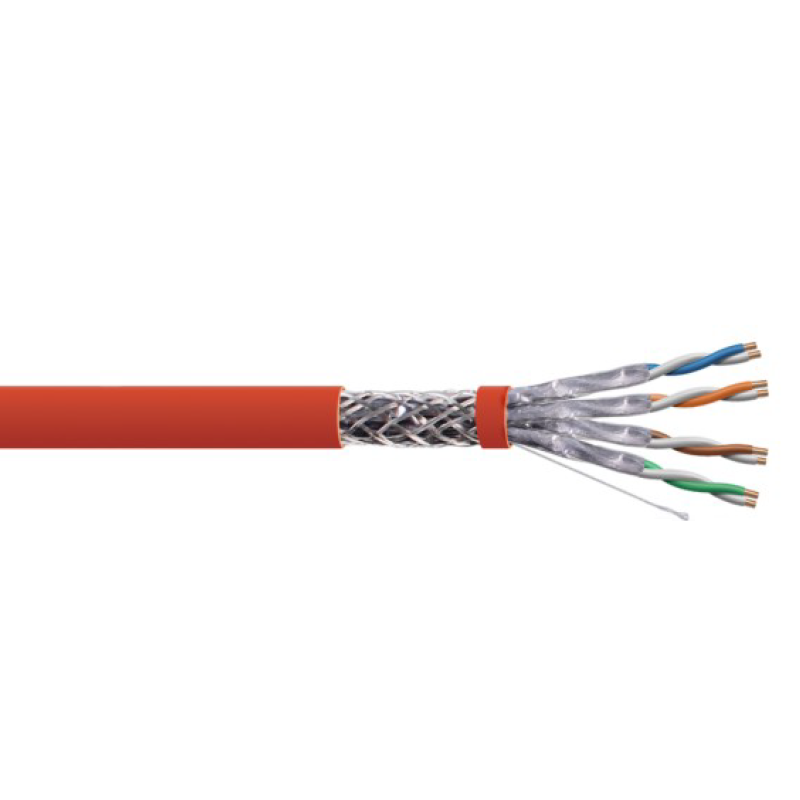

CAT7 SF/FTP CABLE

Cat7 has been designed as a standard for 10 Gigabit Ethernet over 100m of copper cabling. It has a higher bandwidth of up to 1000MHz and backwards compatible with traditional Cat5e, Cat6 and Cat6a Ethernet.

This cable offers extensive shielding to reduce signal attenuation and is relatively stiff in comparison to previous generations of cabling. It is great for datacenters, server rooms, and telecommunications rooms.

Features

• Capable of handling the latest versions of Power over Ethernet


• Conductor sizes for Cat7 set at 23AWG


• PVC LSZH jacketed 4 pair telecommunications cable


• Successful transmission at 1000Mhz up to a length of 100Mtrs


• EZI-Pull 305Mtr Reel for trouble free installation


• Foil shield helps prevent EMI/RFI & AXT from entering cable

Applications

• Horizontal and backbone cable


• 10GBASE-T 10 Gigabit Ethernet


• 1000BASE-TX Gigabit Ethernet / 1000BASE-T Gigabit Ethernet


• 100BASE-TX Fast Ethernet / 10BASE-TX Ethernet


• 100VG-AnyLAN / Broadband Video / Voice / T1 / ISDN


• 10 Gigabit (500Mhz) Transmission up to length of 100Mtrs

Standards Conformance

• Performance - ANSI/TIA 568.2-D Cat.6A / ISO/IEC 11801


• Structural - EN 13501-6:2014 | IEC 61156-5 | EN 50288-10-1


• PoE capability - IEEE 802.3bt level 3 & 4 (PoE++ & 4PPoE)


• Environmental - Conforms to RoHS and REACH Directives


• Flame testing - EN 60332-1-2 | EN61034-2 | EN 60754-1/2


• CPR Reaction To Fire - Equivalent to Dca,s2,d2,a1 as per EN 50399
